How Do I Export Images as Files?

You can export images as files.

To Export an Image​

  1. Select and open a Study

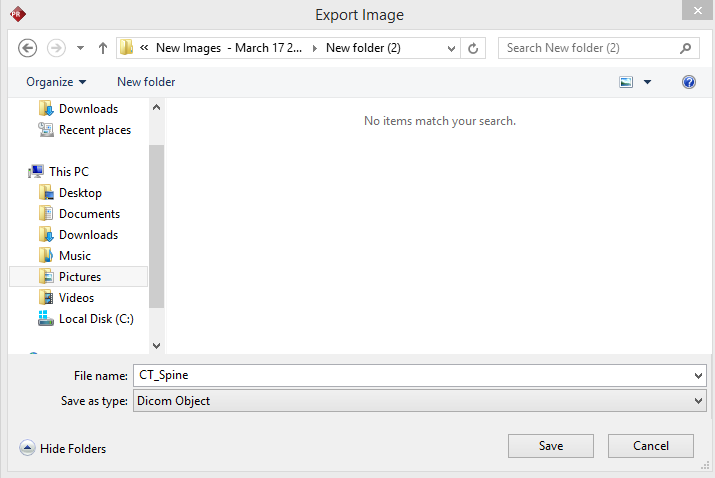

  2. Click File > Export .... Upon click, the application will open an Export Image window.

  1. Select the location where the file will be exported.

  1. Select the name from the list.
  2. Click the drop-down menu and choose the appropriate type of format in which you wish the image to be saved.
  3. Click Save. The image can now be opened with any application that supports the File Type. The available formats are DICOM, JPEG and Windows Bitmap.

To Export multiple Images​

  1. Select the desired images by clicking on it. Hold Shift key for continuous selection, Ctrl key for random selection.

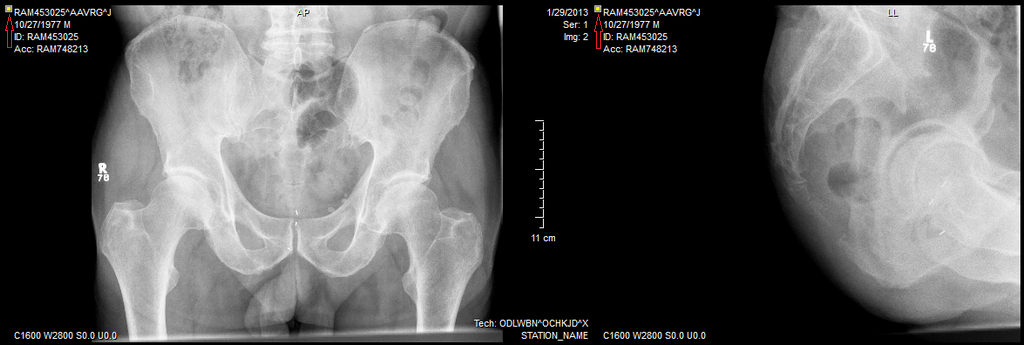

  2. All selected images will be highlighted with a solid tiny square box on the top left corner in the viewport of each selected image as shown below.

  1. Select File > Export... to open the Export Image window.
  2. Select the location to export the files to.
  3. Type in a file name in the File name text field.
  4. Click the drop-down in Save as type and chose the appropriate format.
  5. Click Save. A confirmation window appears after multiple images have been exported successfully.

  1. The exported images are saved with incremental numbers appended to the end of the given file name. In this example, Import_Non_DICOM_Object2, so the files were saved with names Import_Non_DICOM_Object2-1.DCM, Import_Non_DICOM_Object2-2.DCM etc.
